Hexagonal Stainless Steel Screws Anti Rust For Photovoltaic Bracket,Stainless Steel Screw
Product Details:
| Place of Origin: | China |
| Brand Name: | Feitai |
| Certification: | ISO9001,16949 |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | as per customer requirements or 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | EPE, Blister box，foam, Carton |
| Delivery Time: | 4-7days,8-15days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 150000/year |
|
Detail Information |
|||
| Material: | Stainless Steel 304 | Payment Terms: | T/T,L/C |
|---|---|---|---|
| Certification: | ISO9001,16949 | Supply Ability: | 200 Tons/Month |
| Standard: | ANSI,DIN,ISO,GB | Place Of Original: | Shenzhen,Guangdong,China |
| Package: | 100pcs/Box , Bulk Packing,Box+Carton+Pallet | ||
| High Light: | Hexagonal Stainless Steel Screws,Stainless Steel Screws Anti Rust,Stainless Steel Cylindrical Head Screws |
||
Product Description

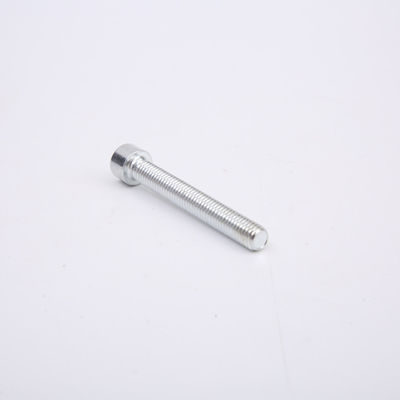

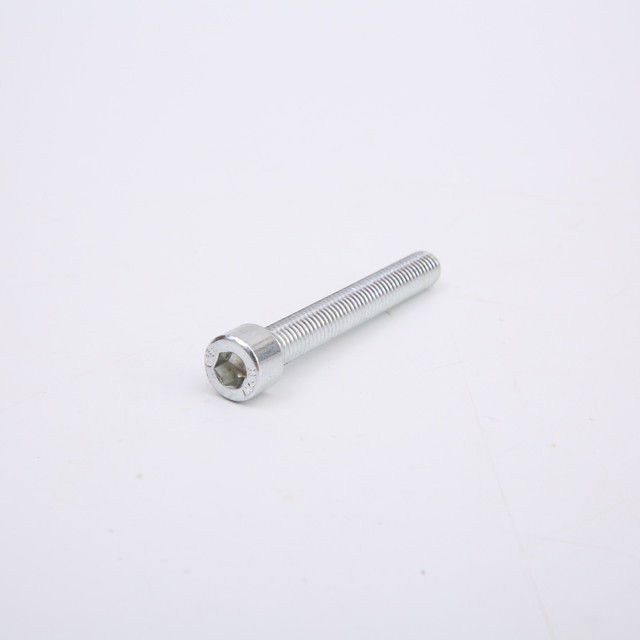

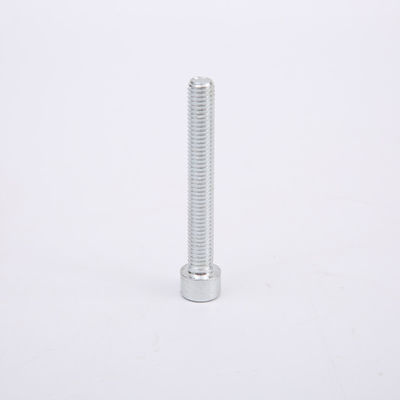

Hexagonal Stainless Steel Screws Anti Rust For Photovoltaic Bracket, Stainless Steel Screw
Commodity attributes: Standard: DIN912
Material: 304 stainless steel
Use Anti-rust
Surface treatment stainless steel whitewashed
Strength Registration A2-70
Head shape Cylindrical head
Deeply plowing the precision hardware industry for many years
Committed to providing customers with high-quality precision hardware and various problem solutions
Main business: 304 inner hexagons, 304 outer hexagons, 12.9 level inner hexagon
12.9 Hexagon and other products
|
Nominal diameter |
Pitch, P (mm) |
Head diameter (mm) (Max) |
Head diameter (mm) Min |
K(Max) |
Min |
s(Max) |
Min |
T |
| M1.4 | 0.3 | 2.74 | 2.46 | 1.4 | 1.26 | 1.36 | 1.32 | 0.6 |
| M1.6 | 0.35 | 3.14 | 2.86 | 1.6 | 1.46 | 1.56 | 1.52 | 0.7 |
| M2 | 0.4 | 3.98 | 3.62 | 2 | 1.86 | 1.56 | 1.52 | 1 |
| M2.5 | 0.45 | 4.68 | 4.32 | 2.5 | 2.36 | 2.06 | 2.02 | 1.1 |
| M3 | 0.5 | 5.68 | 5.32 | 3 | 2.86 | 2.58 | 2.52 | 1.3 |
| M4 | 0.7 | 7.22 | 6.78 | 4 | 3.82 | 3.08 | 3.02 | 2 |
| M5 | 0.8 | 8.72 | 8.28 | 5 | 4.82 | 4.095 | 4.02 | 2.5 |
| M6 | 1 | 10.22 | 9.78 | 6 | 5.7 | 5.14 | 5.02 | 3 |
| M8 | 1.25 | 13.27 | 12.73 | 8 | 7.64 | 6.14 | 6.02 | 4 |
| M10 | 1.5 | 16.27 | 15.73 | 10 | 9.64 | 8.175 | 8.025 | 5 |
| M12 | 1.75 | 18.27 | 17.73 | 12 | 11.57 | 10.18 | 10.025 | 6 |
| M14 | 2 | 21.33 | 20.67 | 14 | 12.57 | 12.21 | 12.032 | 7 |
| M16 | 2 | 24.33 | 23.67 | 16 | 15.57 | 14.21 | 14.032 | 8 |
| M18 | 2.5 | 27.33 | 26.67 | 18 | 17.57 | 14.21 | 14.032 | 9 |
| M20 | 2.5 | 30.33 | 19.67 | 20 | 19.48 | 17.23 | 17.05 | 10 |
| M22 | 2.5 | 33.39 | 32.61 | 22 | 21.48 | 17.23 | 17.05 | 11 |
| M24 | 3 | 36.36 | 35.61 | 24 | 23.48 | 19.28 | 19.065 | 12 |
| M27 | 3 | 40.39 | 39.61 | 27 | 26.48 | 19.28 | 19.065 | 13.5 |
Advantages:
1. Standard specifications, specifications, and sizes as per standards
2. Complete specifications to meet your different needs
3. Fine workmanship, fine workmanship, artisan spirit from the details of quality, worthy of your trust
4. Support customization, according to customer needs, customize different color specifications, styles, etc
