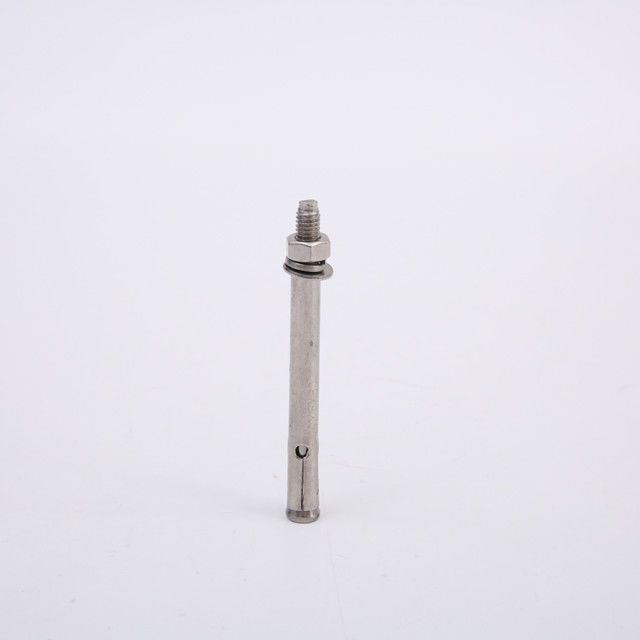

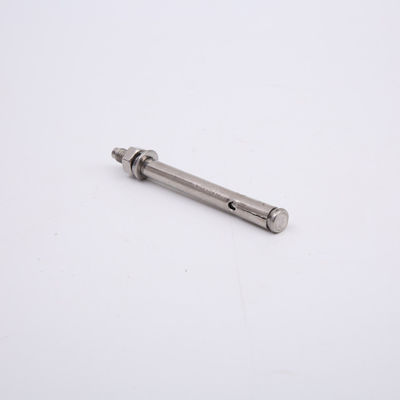

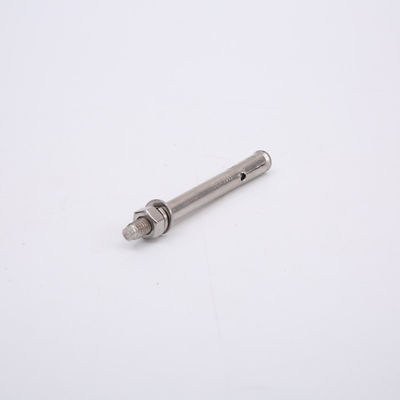

M8M10 Metal Expansion Bolt Screw National Standard Expansion Bolt
Product Details:
| Place of Origin: | China |
| Brand Name: | Feitai |
| Certification: | ISO9001,16949 |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | as per customer requirements or 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | EPE, Blister box，foam, Carton |
| Delivery Time: | 4-7days,8-15days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 150000/year |
|
Detail Information |
|||
| Material: | Stainless Steel，Carbon Steel Q235 | Application: | Large Aircraft, Large Power Generation Equipment, Automobiles, High-speed Trains, Large Ships, Large Complete Sets Of Equipment |
|---|---|---|---|
| Payment Terms: | T/T, L/C, Western Union, MoneyGram | Place Of Original: | Shenzhen,Guangdong,China |
| Package: | PE Bag, Packaging Paper Material,Vacuum Package, Bubble Cotton, And Plastic Box With Honeycomb For Inner Packing Are Available For Customer Options. Normal Cartons, Carton Pallets, And Wooden Cases For Outer Packing Are Available For Customer Options. A Cu | Certification: | ISO9001,16949 |
| Highlight: | Metal Expansion Bolt Standard,Metal Expansion Bolt Screw,M8M10 Expansion Screw Bolt |
||
Product Description
Expansion screw Expansion bolt M8M10 Metal external expansion national standard expansion bolt
Material: Carbon steel Q235
Utility fastening
Finish gloss galvanized
Standard number GB/T15856.1-2002
Strength rating 4.8
Expansion screw Expansion bolt, M8M10 Metal external expansion national standard expansion bolt.
Application: Construction industry, rail transit equipment
| specification | Nominal length(mm) | Nominal thread | Casing outside diameter(mm) | Screw pitch | Length of the opposite side of the combination nut |
| 6*60(2400pcs/carton) | 52 | M6 | 10 | 1 | 1 |
| 6*80(1800pcs/carton) | 72 | M6 | 10 | 1 | 1 |
| 6*100(1400pcs/carton) | 90 | M6 | 10 | 1 | 1 |
| 8*60(1400pcs/carton) | 51 | M8 | 12 | 1.25 | 1 |
| 8*70(1200pcs/carton) | 61 | M8 | 12 | 1.25 | 1 |
| 8*80(1000pcs/carton) | 71 | M8 | 12 | 1.25 | 1 |
| 8*100(880pcs/carton) | 91 | M8 | 12 | 1.25 | 1 |
| 8*120(720pcs/carton) | 111 | M8 | 12 | 1.25 | 1 |
| 8*150(600pcs/carton) | 141 | M8 | 12 | 1.25 | 1 |
| 8*200(440pcs/carton) | 190 | M8 | 12 | 1.25 | 1 |
| 10*60(1000pcs/carton) | 51 | M10 | 14 | 1.5 | 1 |
| 10*80(720pcs/carton) | 72 | M10 | 14 | 1.5 | 1 |
| 10*100(600pcs/carton) | 90 | M10 | 14 | 1.5 | 1 |
| 10*120(480pcs/carton) | 112 | M10 | 14 | 1.5 | 1 |
| 10*150(400pcs/carton) | 141 | M10 | 14 | 1.5 | 1 |
| 10*200(320pcs/carton) | 135 | M10 | 14 | 1.5 | 1 |
| 12*80(560pcs/carton) | 72 | M12 | 16 | 1.75 | 1 |
| 12*100(440pcs/carton) | 92 | M12 | 16 | 1.75 | 1 |
| 12*120(400pcs/carton) | 112 | M12 | 16 | 1.75 | 1 |
| 12*150(320pcs/carton) | 135 | M12 | 16 | 1.75 | 1 |
| 12*200(240pcs/carton) | 185 | M12 | 16 | 1.75 | 1 |
| 14*100(360pcs/carton) | 90 | M14 | 18 | 2 | 1 |
| 14*120(280pcs/carton) | 110 | M14 | 18 | 2 | 1 |
| 14*150(240pcs/carton) | 135 | M14 | 18 | 2 | 1 |
| 14*200(200pcs/carton) | 185 | M14 | 18 | 2 | 1 |
| 16*100(280pcs/carton) | 85 | M16 | 20 | 2 | 1 |
| 16*120(240pcs/carton) | 105 | M16 | 20 | 2 | 1 |
| 16*150(200pcs/carton) | 135 | M16 | 20 | 2 | 1 |
| 16*200(140pcs/carton) | 185 | M16 | 20 | 2 | 1 |
| 16*250(120pcs/carton) | 235 | M16 | 20 | 2 | 1 |
| 18*150(160pcs/carton) | 135 | M18 | 22 | 2.5 | 1 |
| 18*200(120pcs/carton) | 165 | M18 | 22 | 2.5 | 1 |
| 20*150(120pcs/carton) | 140 | M20 | 24 | 2.5 | 1 |
| 20*200(100pcs/carton) | 190 | M20 | 24 | 2.5 | 1 |
| 20*250(75pcs/carton) | 240 | M20 | 24 | 2.5 | 1 |
| 24*200(60pcs/carton) | 190 | M24 | 28 | 3 | 1 |
| 24*250(50pcs/carton) | 240 | M24 | 28 | 3 | 1 |
| 24*300(40pcs/carton) | 290 | M24 | 28 | 3 | 1 |
Feitai in the fastener mainly in these products:
high-strength bolts, high-strength nuts,
steel structure bolts, ground teaching bolts,
welding nails, steel structure brace,
embedded plates, cable hooks,
and other non-standard customized production and processing companies,
with a complete quality management system.
