Galvanized Expansion Bolt Screw , Drive Iron M8 M10 Expansion Screw
Product Details:
| Place of Origin: | China |
| Brand Name: | Feitai |
| Certification: | ISO9001,16949 |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | as per customer requirements or 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | EPE, Blister box，foam, Carton |
| Delivery Time: | 4-7days,8-15days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 150000/year |
|
Detail Information |
|||
| Material: | Stainless Steel，Carbon Steel Q235,Aluminum,Titanium Alloy | Application: | Large Aircraft, Large Power Generation Equipment, Automobiles, High-speed Trains, Large Ships, Large Complete Sets Of Equipment,Screen Construction Industry |
|---|---|---|---|
| Payment Terms: | T/T, L/C, Western Union, MoneyGram | Place Of Original: | Shenzhen,Guangdong,China |
| Package: | PE Bag, Packaging Paper Material,Vacuum Package, Bubble Cotton, And Plastic Box With Honeycomb For Inner Packing Are Available For Customer Options. Normal Cartons, Carton Pallets, And Wooden Cases For Outer Packing Are Available For Customer Options. A Cu | Certification: | ISO9001,16949 |
| High Light: | Galvanized Expansion Bolt Screw,M8 Expansion Screw,M10 Expansion Screw |
||
Product Description

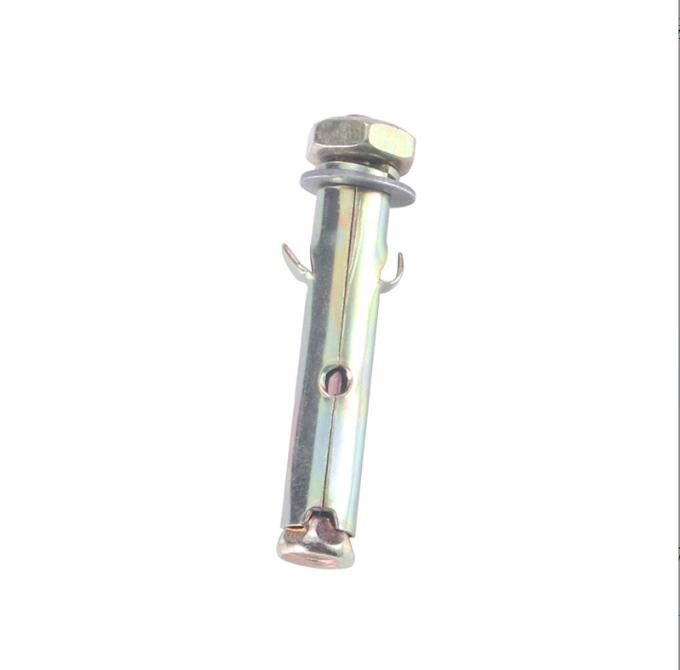

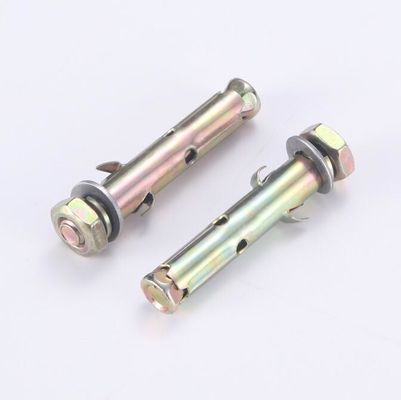

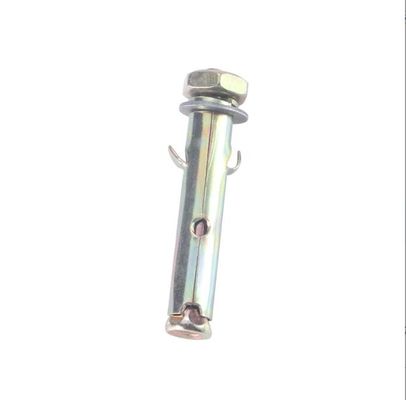

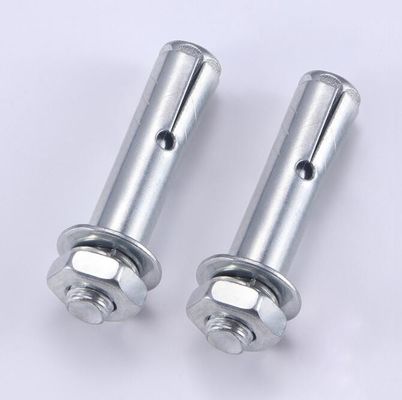

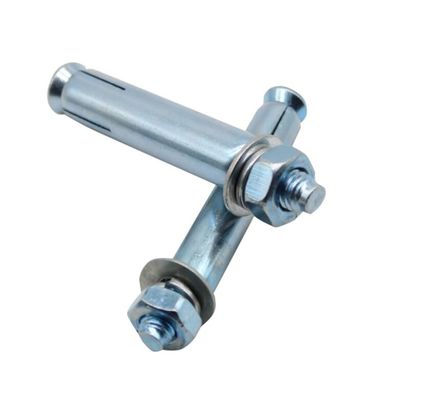

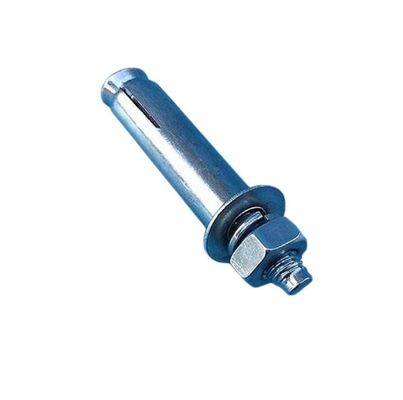

Galvanized expansion screw Expansion bolt Tube M8 GB extended drive iron expansion M6 expansion bolt M10
Material: Carbon steel Q235, stainless steel
Utility fastening
Finish gloss galvanized
Standard number GB/T15856.1-2002
Strength rating 4.8
Expansion screw Expansion bolt, M8M10 Metal external expansion national standard expansion bolt.
Application: Construction industry, rail transit equipment
| specification | Nominal length(mm) | Nominal thread | Casing outside diameter(mm) | Screw pitch | Length of the opposite side of the combination nut |
| 6*60(2400pcs/carton) | 52 | M6 | 10 | 1 | 1 |
| 6*80(1800pcs/carton) | 72 | M6 | 10 | 1 | 1 |
| 6*100(1400pcs/carton) | 90 | M6 | 10 | 1 | 1 |
| 8*60(1400pcs/carton) | 51 | M8 | 12 | 1.25 | 1 |
| 8*70(1200pcs/carton) | 61 | M8 | 12 | 1.25 | 1 |
| 8*80(1000pcs/carton) | 71 | M8 | 12 | 1.25 | 1 |
| 8*100(880pcs/carton) | 91 | M8 | 12 | 1.25 | 1 |
| 8*120(720pcs/carton) | 111 | M8 | 12 | 1.25 | 1 |
| 8*150(600pcs/carton) | 141 | M8 | 12 | 1.25 | 1 |
| 8*200(440pcs/carton) | 190 | M8 | 12 | 1.25 | 1 |
| 10*60(1000pcs/carton) | 51 | M10 | 14 | 1.5 | 1 |
| 10*80(720pcs/carton) | 72 | M10 | 14 | 1.5 | 1 |
| 10*100(600pcs/carton) | 90 | M10 | 14 | 1.5 | 1 |
| 10*120(480pcs/carton) | 112 | M10 | 14 | 1.5 | 1 |
| 10*150(400pcs/carton) | 141 | M10 | 14 | 1.5 | 1 |
| 10*200(320pcs/carton) | 135 | M10 | 14 | 1.5 | 1 |
| 12*80(560pcs/carton) | 72 | M12 | 16 | 1.75 | 1 |
| 12*100(440pcs/carton) | 92 | M12 | 16 | 1.75 | 1 |
| 12*120(400pcs/carton) | 112 | M12 | 16 | 1.75 | 1 |
| 12*150(320pcs/carton) | 135 | M12 | 16 | 1.75 | 1 |
| 12*200(240pcs/carton) | 185 | M12 | 16 | 1.75 | 1 |
| 14*100(360pcs/carton) | 90 | M14 | 18 | 2 | 1 |
| 14*120(280pcs/carton) | 110 | M14 | 18 | 2 | 1 |
| 14*150(240pcs/carton) | 135 | M14 | 18 | 2 | 1 |
| 14*200(200pcs/carton) | 185 | M14 | 18 | 2 | 1 |
| 16*100(280pcs/carton) | 85 | M16 | 20 | 2 | 1 |
| 16*120(240pcs/carton) | 105 | M16 | 20 | 2 | 1 |
| 16*150(200pcs/carton) | 135 | M16 | 20 | 2 | 1 |
| 16*200(140pcs/carton) | 185 | M16 | 20 | 2 | 1 |
| 16*250(120pcs/carton) | 235 | M16 | 20 | 2 | 1 |
| 18*150(160pcs/carton) | 135 | M18 | 22 | 2.5 | 1 |
| 18*200(120pcs/carton) | 165 | M18 | 22 | 2.5 | 1 |
| 20*150(120pcs/carton) | 140 | M20 | 24 | 2.5 | 1 |
| 20*200(100pcs/carton) | 190 | M20 | 24 | 2.5 | 1 |
| 20*250(75pcs/carton) | 240 | M20 | 24 | 2.5 | 1 |
| 24*200(60pcs/carton) | 190 | M24 | 28 | 3 | 1 |
| 24*250(50pcs/carton) | 240 | M24 | 28 | 3 | 1 |
| 24*300(40pcs/carton) | 290 | M24 | 28 | 3 | 1 |
Feitai in the fastener mainly in these products:
high-strength bolts, high-strength nuts,
steel structure bolts, ground teaching bolts,
welding nails, steel structure brace,
embedded plates, cable hooks,
and other non-standard customized production and processing companies,
with a complete quality management system.
Want to Know more details about this product
